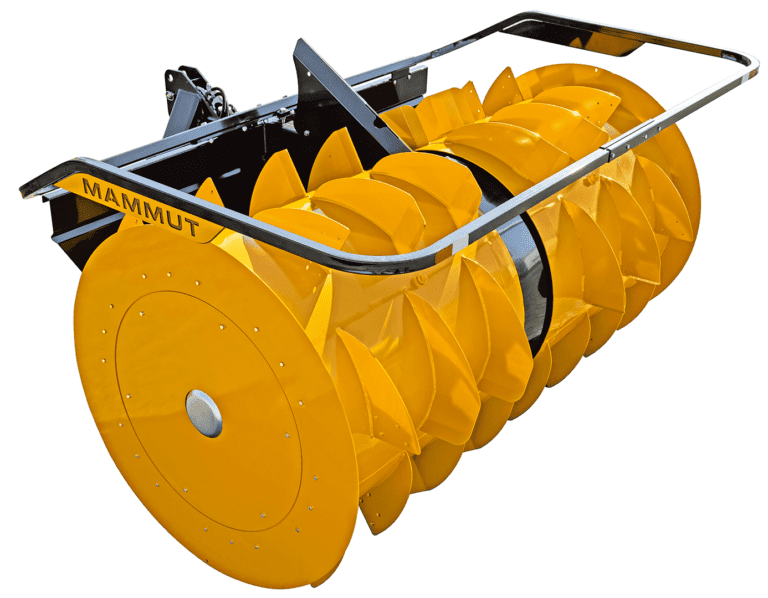

Silo Fox KOLOSS

MAMMUT Silo Fox KOLOSS

The professional model for agricultural contractors and large farms.

Ever larger and more comfortable tractors also have ever-increasing performance requirements. Technology that requires new dimensions in silage processing is often used, especially in the case of large dairy farms, agricultural contractors or biogas plants. With the Silo Fox KOLOSS, you can control the feed quality, even with extremely large unloading quantities. With this professional model, both the machine dimensions and the comfortable basic equipment are adapted to the modern framework conditions in agricultural engineering. All models are available as rear-mounted units or front and rear models with reverse gear.a

for tractors with 140 HP and above

Drum diameter = 1,480 mm

for extremely high unloading quantities

available as rear model or front and rear model

Rear model standard equipment	Front and rear model standard equipment
Three-point attachment cat. 2 and cat. 3	Three-point attachment cat. 2 and cat. 3
Attachment triangle on the side of the device	Attachment triangle on the side of the device
Drive shaft	Drive shaft
Built-in cam clutch	Built-in cam clutch
–	Reverse gear for front and rear use
Water-fillable distributor drum	Water-fillable distributor drum
Spreading width adjustment	Spreading width adjustment
Side guide plate (on the drum)	Side guide plate (on the drum)

Technical data

	SF 260 KOLOSS	SF 290 KOLOSS
Drum diameter	1.480 mm	1.480 mm
Joint drum width	2.600 mm	2.900 mm
Working width	3.400 mm	3.700 mm
Power requirement	ab 140 PS	ab 160 PS
PTO speed rear/front	540 / 1.000	540 / 1.000
Net weight	approx. 1400 kg	approx. 1530 kg
Additional weight due to water filling (optional)	ca. 1.000 kg	ca. 1.000 kg
Swivel range to left and right (optional equipment)	ca. 20 °	ca. 20 °
Spreading width adjustment

Accessories

Hydraulic pvoting device

With the hydraulic pivoting device, the feed is evenly distributed right into the last corner of the bunker silo. The optimally chosen pivot point close to the three-point attachment not only makes a high lateral offset possible, but also allows the distributor to be pivoted away from the silo wall particularly easily.

Two swivelling cylinders

In the case of the Silo Fox KOLOSS model, the swivelling device is equipped with two cylinders, and a locking block prevents the device from swivelling in unintentionally and therefore increases safety, e.g. when driving on the road.

Hydraulische Schwenkvorrichtung mit durchdachtem Drehpunkt nahe beim Dreipunktanbau

Silo Fox mit hydraulischer Schwenkvorrichtung und durchdachtem Drehpunkt

Robust oil motor instead of PTO drive

For using the silage spreader on wheel or telescopic loaders, a factory-installed robust oil motor is available as an alternative to the classic PTO drive. A minimum output of approx. 140 litres/min is required to drive the hydraulic motor for the Silo Fox KOLOSS model. MAMMUT provides a wide range of accessories for individual equipment options for wheel loaders and telescopic loaders (attachments, adapters, etc.). We would be pleased to advise you personally or on the phone.

+43 (0) 7757 6701

Ölantrieb zur Verwendung des Siloverteilers am Rad- oder Teleskoplader

Robuster Ölantrieb statt Zapfwellenantrieb beim Silo Fox KOLOSS

Important when on the road: Lighting system

In order to also be safe on the road, there is an optional LED street lighting system already integrated in the safety bar of the Silo Fox KOLOSS model. This equipment is particularly useful for inter-company use of the silage distributor. The driver of the vehicle is always responsible for complying with the relevant road traffic regulations. Important for contractors: Since the new model series of SILO FOX distributors, MAMMUT offers a particularly useful feature for contractors. From now on, it is possible to quickly and easily attach and detach the road lighting system with magnetic brackets, so that the changeover time of the silage spreader is efficiently reduced. For your drivers, this means more working comfort and faster operational readiness in the silo. The necessary deflector plate set is already included as standard with the KOLOSS silage spreader.

Silo Fox KOLOSS lighting system

Practically combined: Deflector plate package and lighting system

Thanks to magnetic holders, the warning signs are quickly put away (combination deflector plates & lighting)

Single-sided wide-angle PTO shaft

With all models in the Silo Fox series, a normal PTO shaft is sufficient in most cases due to the pivot point being close to the three-point attachment. A single-sided wide-angle PTO shaft may occasionally be required, on tractors with high attachment points or if the silage spreader is lifted sharply when the PTO shaft is switched on. This can be ordered quite simply as an accessory for the Silo Fox KOLOSS.

Einseitige Weitwinkelgelenkwelle für Traktoren mit hohem Anbaupunkt

Other models:

Silo Fox CLASSIC

104 cm drum diameter 175 to 215 cm drum width

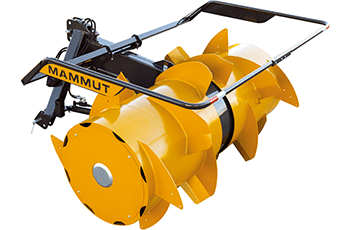

Silo Fox TITAN

115 cm drum diameter 205 to 245 cm drum width

Silo Fox GIGANT

128 cm drum diameter 230 to 280 cm drum width
