MAMMUT Silo Fox GIGANT
For efficient distribution of large amounts of feed.
Great efficiency with high unloading quantities – the silage spreader Silo Fox GIGANT is the silage distributor for large farms and agricultural contractors. The model is ideal for any feed quantities that result from large-volume push-off and loading wagons and short logistics chains. The silo distributor impresses with its large drum height and width, as well as the numerous equipment options. Here too, all models are available as a rear-mounted unit or a front and rear model with reverse gear.
for tractors with 100 HP and above
Drum diameter = 1,280 mm
for high unloading quantities
available as rear model or front and rear model
Rear model standard equipment | Front and rear model standard equipment |
---|---|
Three-point attachment cat. 2 and cat. 3 | Three-point attachment cat. 2 and cat. 3 |
Drive shaft | Drive shaft |
Overload protection built into the distributor | Overload protection built into the distributor |
– | Reverse gear for front and rear use |
Water-fillable distributor drum | Water-fillable distributor drum |
Spreading width adjustment | Spreading width adjustment |
Technical data
SF 230 GIGANT | SF 280 GIGANT | |
---|---|---|
Drum diameter | 1.280 mm | 1.280 mm |
Total drum width | 2.300 mm | 2.800 mm |
Working width | 3.000 mm | 3.500 mm |
Power requirement | ab 100 PS | ab 120 PS |
PTO speed rear/front | 540 / 1.000 | 540 / 1.000 |
Net weight | approx. 990 kg | approx. 1040 kg |
Additional weight due to water filling (standard) | ca. 1.000 kg | ca. 1.000 kg |
Swivel range to left and right (optional equipment) | ca. 20 ° | ca. 20 ° |
Spreading width adjustment |
Accessories
Manoeuvrability in all directions

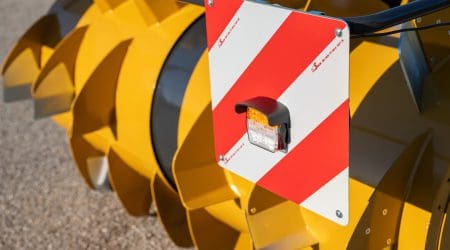

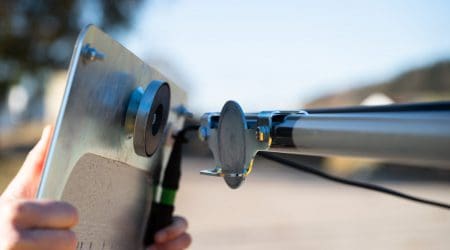

Road lighting system
NEW model range: Baffle plate package as an accessory
Lateral limiting discs on the drum
Oil drive
For using the silage distributor on the wheel or telescopic loader, an oil motor is also available as an alternative to the classic PTO drive. A minimum output of approx. 120 litres/min is required to drive the hydraulic motor for the Silo Fox GIGANT model.
MAMMUT provides a wide range of accessories for individual equipment options for wheel loaders and telescopic loaders (attachments, adapters, etc.). We would be pleased to advise you personally or on the phone.
Single-sided wide-angle PTO shaft
With all models in the Silo Fox series, a normal PTO shaft is sufficient in most cases due to the pivot point being close to the three-point attachment. A single-sided wide-angle PTO shaft may occasionally be required, particularly on tractors with high attachment points or when the silage distributor is lifted sharply when the PTO shaft is switched on. This can be ordered easily as an accessory for the Silo Fox GIGANT.
