Silo Fox CLASSIC

MAMMUT Silo Fox CLASSIC

The silage distributor for small to medium-sized grassland farms

The Silo Fox CLASSIC is the ideal entry-level model for dairy farms, where the feed is delivered in small quantities by loading wagon with a metering roller. Due to its compact size, this model is perfect for smaller carrier vehicles and for use on your own farm. All models are available as a rear-mounted unit or a front and rear model with reverse gear.

for tractors with 60 HP or more

Drum diameter = 1,040 mm

for low unloading quantities

available as rear model or front and rear model

Rear model standard equipment	Front and rear model standard equipment
Three-point attachment cat. 2	Three-point attachment cat. 2
Drive shaft with overload protection	Drive shaft; overload protection built into the distributor
–	Reverse gear for front and rear use
Water-fillable distributor drum	Water-fillable distributor drum
Scatter width adjustment from model SF 195 CLASSIC	Scatter width adjustment from model SF 195 CLASSIC

Technical data

	SF 175 CLASSIC	SF 195 CLASSIC	SF 215 CLASSIC
Drum diameter	1.040 mm	1.040 mm	1.040 mm
Total drum width	1.730 mm	1.930 mm	2.130 mm
Working width	2.500 mm	2.650 mm	2.850 mm
Power requirement	ab 60 PS	ab 60 PS	ab 70 PS
PTO speed rear/front	540 / 1.000	540 / 1.000	540 / 1.000
Net weight	approx. 460 kg	approx. 480 kg	approx. 530 kg
Additional weight due to water filling (standard)	ca. 350 kg	ca. 350 kg	ca. 350 kg
Swivel range to left and right (optional equipment)	ca. 20 °	ca. 20 °	ca. 20 °
Spreading width adjustment	–

Accessories

Hydraulic pivoting device

With the hydraulic pivoting device, the feed is evenly distributed right into the last corner of the bunker silo. The pivot point close to the three-point attachment not only makes a high lateral offset possible, but also allows the distributor to be swivelled away from the silo wall easily. In the case of the Silo Fox CLASSIC model, the pivoting device is equipped with a cylinder, and a locking block prevents the device from swivelling in unintentionally and therefore increases safety, e.g. when driving on the road.

Hydraulische Schwenkvorrichtung mit durchdachtem Drehpunkt nahe beim Dreipunktanbau

Silo Fox mit hydraulischer Schwenkvorrichtung und durchdachtem Drehpunkt

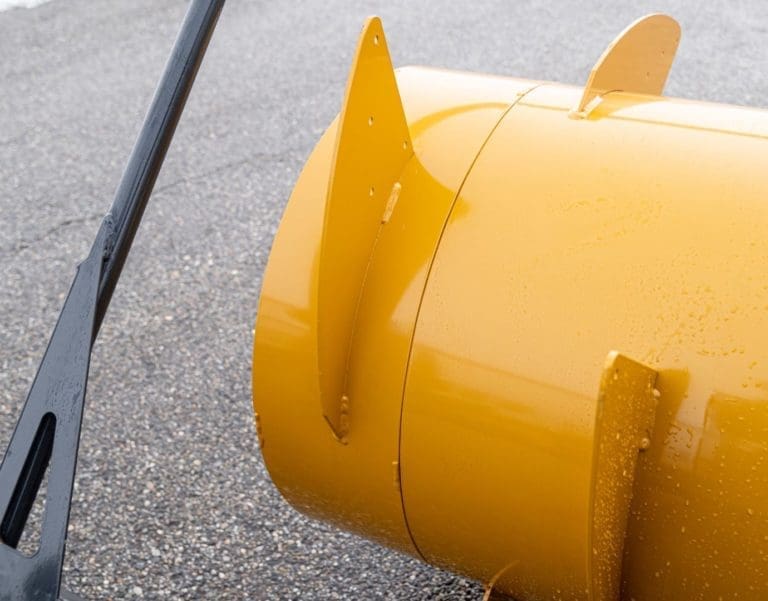

Drum widening

Optional drum widening is possible for the Silo Fox CLASSIC model. These widenings are available in 2 x 20 cm or 2 x 30 cm. This means that the silage spreader can be ideally adapted to different tractor widths.

Optionale Trommelverbreiterung für den Silo Fox CLASSIC

Optionale Trommelverbreiterung für den Silageverteiler Silo Fox CLASSIC

NEW: Deflector plate set for long-fibre forage

The deflector plate set is now available as an accessory for the SILO FOX series of silage distributors. This consists of vertical plates at the rear of the machine and a foldable plate at the top of the headstock. The tool makes the MAMMUT silage spreaders even more user-friendly and allows the forage to slide off effortlessly, preventing forage jams or soiling of the tractor. This option is particularly useful for loader wagon grass and long-fibre forage. The deflector plate package is available for all models. Only on the KOLOSS professional machine this set is already included in the standard equipment.

This accessory allows the feed to slide off ideally

Vertical plates protect the tractor

Robust oil motor instead of PTO drive

If a carrier vehicle with a PTO drive is not available, the machine can also be driven with a factory-installed oil motor without any problems. A minimum output of approx. 90 litres/min is required to drive the hydraulic motor for the Silo Fox CLASSIC model.

MAMMUT provides a wide range of accessories for individual equipment options for wheel loaders and telescopic loaders (attachments, adapters, etc.). We would be pleased to advise you personally or on the phone.
