Silo Grip PREMIUM

MAMMUT Silage grab bucket Silo Grip PREMIUM

The silage grab bucket for professional use and for big carrier vehicles

The silage grab bucket PREMIUM Silo Grip is the professional device among silage grab buckets. Its rugged design enables it to transport any kind of silage and other materials without any problem. At widths of between 1.80 m and 2.60 m, the PREMIUM version is the ideal tool for large quantities of feed and for a versatile range of agricultural operations. From Type SG 220 P, the torsionally resistant top gripper is also equipped with a central mounting for greater stability.

The absolute professional model

Ideal for big wheel loaders and telehandlers

From a width of 2.20 m with additional centre mounting

Widths of 1.80 m to 2.60 m

PREMIUM Silo Grip standard equipment
Rugged top gripper
Two or three hydraulic cylinders (depending on Type) Ø 100 mm
Closed bucket bottom including Hardox scraper strips
Hydraulic hoses and couplings
Basic equipment without any attachments
Maximum operating pressure 210 bar

From Type SG 220 P the gripper is equipped with an additional mounting point.

Technical data

	SG 180 P	SG 200 P	SG 220 P	SG 240 P	SG 260 P
Bucket width	1,80 m	2,00 m	2,20 m	2,40 m	2,60 m
Net weight	660 kg	760 kg	850 kg	940 kg	1.050 kg
Volume	1,05 m³	1,15 m³	1,25 m³	1,35 m³	1,45 m³
Cylinder Ø	100 mm	100 mm	100 mm	100 mm	100 mm
Number of cylinders	2	2	2	2	2
Mounting points	2	2	3	3	3

Accessories

Large selection of attachments

The bolted attachment plates provide a versatile range of attachment options for front loaders or farmyard loaders for the PREMIUM Silo Grip silage grab bucket. Right across the board, MAMMUT offers a choice of different attachment variants – which makes it convenient to adapt the device to any given carrier vehicle. With the additional bolted universal perforated plates make it possible to attach the gripper bucket to other vehicles with different attachment dimensions in a quick and easy operation. In practice, this not only enhances convenience, it also saves time and therefore money as well.
“

SILO GRIP - Anbauten mit geschraubter Universallochplatte

Additional side tine for fine-grained material

If you want to make sure that nothing is lost during transport, even with fine-particle fodder, you can equip your silage grab bucket with these additional side tines. The tines ensure that finer silage remains optimally in the bucket and thus improve the transportability of fine material. 2 pcs. additional tines are included when ordering the accessories.

seitlicher Zusatzzinken Silogreifschaufel SILO GRIP

Valves for the PREMIUM Silo Grip silage grab bucket

To prevent damage at operating pressures in excess of 210 bar, a pressure relief valve is available as an accessory for the PREMIUM Silo Grip. On many carrier vehicles, it is also advisable to install a load-holding valve – this accessory prevents accidental closing of the top gripper on open hydraulic systems (e.g. Merlo, Bobcat, …).

We would be pleased to advise you on this topic and are sure to find the right solution for your business:

+43 (0) 7757 6701

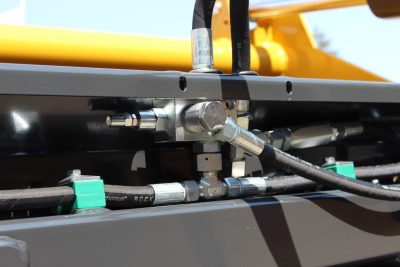

Pressure relief valve for an operating pressure of more than 210 bar

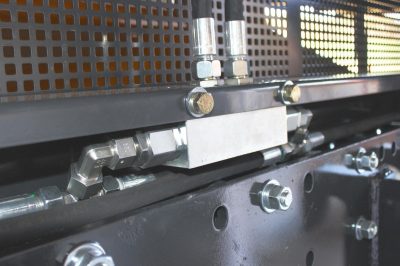

Load holding valve (for open hydraulic systems)

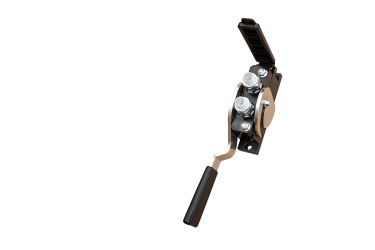

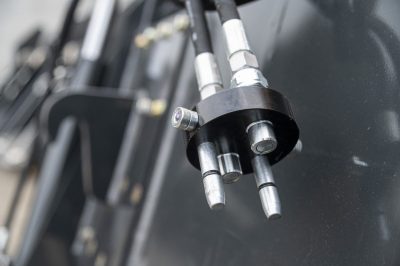

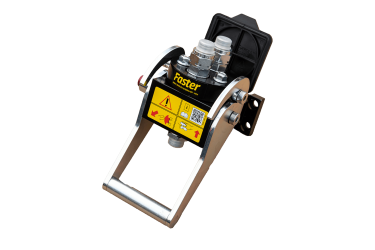

Flexible coupling action with HYDROFIX

The HYDROFIX multi-hose couplers make it easier to connect and disconnect silage gripper buckets on loaders. This assures safe and easy connection without physical effort and without any oil loss. When ordering your gripper bucket, you can choose between a very wide range of different multi-hose couplers.
