Silo Cat N

MAMMUT Shear grab Silo Cat N

The low design of front loader & farmyard loader

The SILO CAT Type N is the perfect shear grab for compact loaders or farmyard loaders or small front loaders. With its lightweight, compact design, the benefits of the SILO CAT can also be employed on smaller carrier vehicles. In terms of convenience and speed and ease of movement, it is every bit as good as the larger models.

Lightweight unit

Ideal for smaller carrier vehicles

Block height of approx. 70 cm

Volumes of 0.48 m³ to 0.92 m³

Standard equipment for the Silo Cat N
Robust cutting bucket with welded Hardox knife cutter
Two Ø 90 mm hydraulic cylinders for type SC 90 N Two Ø 100 mm hydraulic cylinders for type SC 120 N, SC 150 N & SC 170 N
Tines made of high-quality spring steel
Powder-coated carrier frame
Hydraulic hoses and couplings
Basic equipment without any attachments
Maximum operating pressure 210 bar

Technical data

	SC 90 N	SC 120 N	SC 150 N	SC 170 N
Block width	0,91 m	1,19 m	1,44 m	1,69 m
Block height	0,70 m	0,70 m	0,70 m	0,70 m
Block depth	0,78 m	0,78 m	0,78 m	0,78 m
Fill volume	0,48 m³	0,64 m³	0,78 m³	0,92 m³
Cylinders Ø (2 pieces)	90 mm	100 mm	100 mm	100 mm
Net weight	360 kg	420 kg	480 kg	540 kg
Number of tines	8	10	12	14

Accessories

Universal attachment options

With SILO CAT, a tremendously wide range of attachment options is available for the tractor (with and without lifting equipment), and for front-loaders, farmyard loaders, wheeled loaders and telehandlers. This makes implement changes much faster because it is no longer necessary to perform time-consuming adjustment of the mounting for the individual carrier vehicle. All attachments are screwed and are easy to replace, with no welding required. Due to the compact size and lightweight design of machines in the N series, an attachment for a front loader or a farmyard loader is often ordered at the same time.

Silozange SILO CAT - geschraubte Anbauten

Ideal: Corn plate for a closed rear wall

The completely closed rear wall prevents finely chopped corn silage getting lost while in transit. As standard, the grey frame of the SILO CAT N opens at the back. The corn plate holds the feed components in the cutting basket together compactly – a floor plate is available as a separate accessory to cover the tines.

Hinged floor plate for fine-grained silage

The tines on the silage shears can be covered with an optional floor plate and this is the perfect way to prevent the loss of fine-grained feed while in transit. This accessory is available for all SILO CAT models. With the Type N, there is a choice between a hydraulic or mechanical hinged floor plate. Various activation options and valves make the hydraulic hinged plate easier to operate if the carrier vehicle does not have sufficient dual-action functions. The hinged floor plate cannot be combined with the pusher.

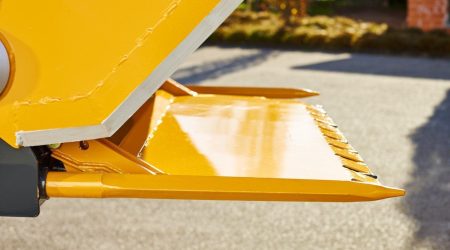

Mechanical floor plate

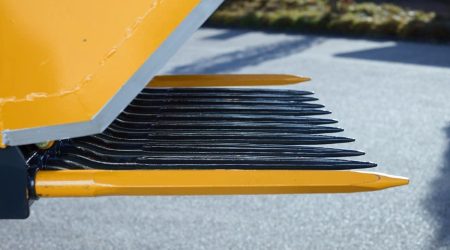

With grass silage, the floor plate is simply folded up vertically

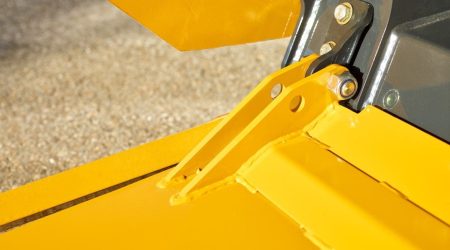

Each accessory can be retrofitted without welding

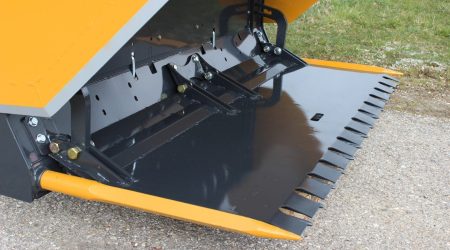

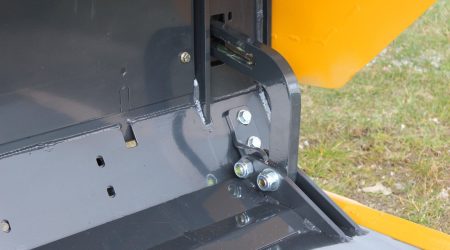

Hydraulic floor plate

Ideal for automatic feeding systems: the hydraulic pusher.

The silo block can be set down conveniently with a hydraulic full pusher. This additional equipment is perfectly suited to the filling of automatic livestock feeding systems or for laying in a stock of silage. This pusher can also be used with the silo cutting shovel for setting down a block of corn silage in an animal shed, or for loading the feed mixer where the loader does not have sufficient headroom for tipping. It is easy to push the silo block into the mixer carriage without the need to tilt the shears. If there are not enough double-action control units on the carrier vehicle, it is advisable to install a sequential shift valve (which can also be sourced from MAMMUT).

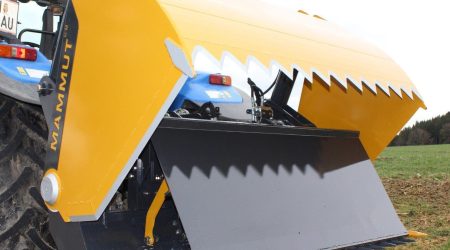

Hydraulic pusher is available as an option.

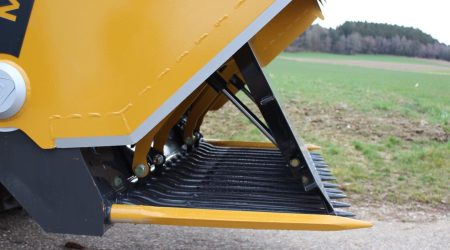

With the full-size pusher, the silage block is pushed conveniently off the tines.

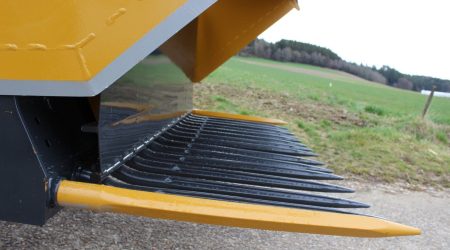

When removing silage from the feed silo, the pusher is perpendicular on the frame of the silo shears.

A vast range of different control units and valves for SILO CAT

In combination with a hydraulically activated accessory such as lifting frame, a floor plate or a pusher, it is advisable to equip the silage shear grab with control elements or valves from MAMMUT. If the carrier vehicle does not have sufficient double-action functions, this is an easy way to remedy that issue.

Please contact the experts from MAMMUT for advice:

+43 (0) 7757 6701

Possible control operations are:

Tip:

Optionally, 2 x DW can be activated with a sequential shift valve (to be used on the hydraulic pusher).

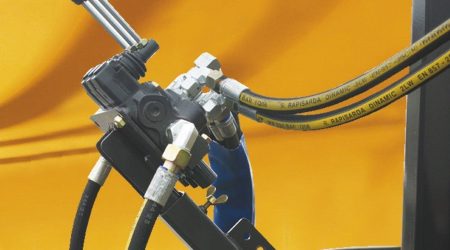

Central control block

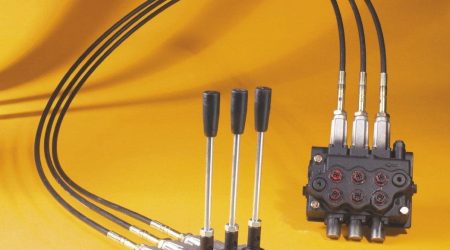

Bowden cable with central control block

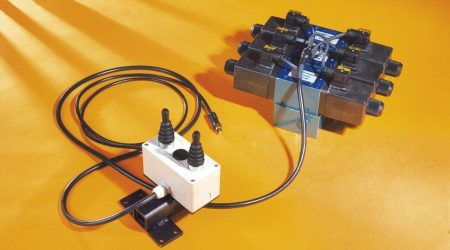

E-activation with central control block

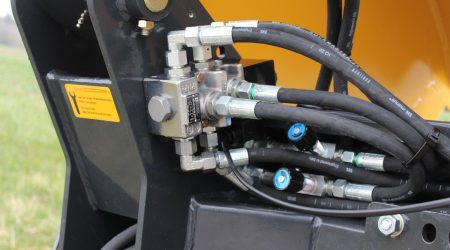

E-valve

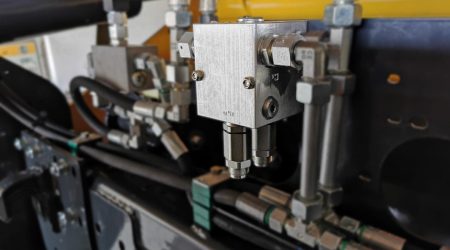

Ideal in combination with a pusher: Sequential shift valve

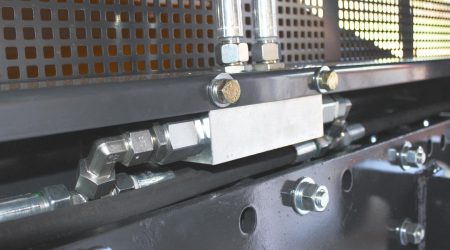

Load holding valve (for open hydraulic systems)

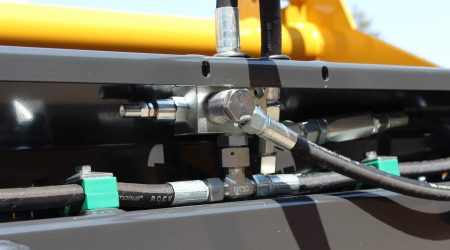

Pressure relief valve for an operating pressure of more than 210 bar

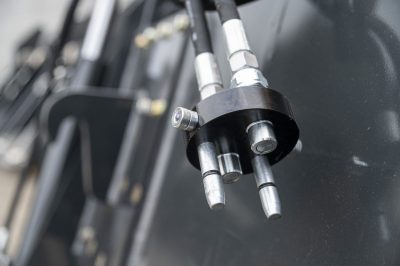

Tip: HYDROFIX multi-hose coupler

Our accessory tip: HYDROFIX multi-hose couplers make it easier to connect and disconnect the silage shears and are easy to work with, without physical effort and without any oil loss. When ordering your shear grab you can choose between a huge variety of multi-hose couplers.
