Standard pan mixer

MAMMUT TURBO MIX pan mixer

The pan mixer for versatile and mobile use on the farm

The standard pan mixer TURBO MIX is very popular due to its variety of models and easy handling and is used thousands of times worldwide. The range extends from 240 litres to 1,200 litres of usable concrete and from 950 mm to 2,000 mm drum diameter. Thus, the TURBO MIX can be used for small tractors as well as for larger carrier vehicles, depending on the type and requirements. With the standard three-point linkage including chain as well as a bag opener and the tractor guard, the tractor concrete mixer is always ready for spontaneous use. A wide range of accessories and drive variants also allow the TURBO MIX to be adapted to individual requirements.

Large variety of types

Uniform mixing quality

Flexible use around the house & yard

3 years warranty on the gear

Type overview

Technical data

	TM 95	TM 125	TM 150	TM 180	TM 200
Usable capacity for concrete	240 l	500 l	750 l	1.000 l	1.200 l
Capacity for light material without light material attachment	320 l	700 l	940 l	1.200 l	1.400 l
Capacity for light material with light material attachment	-	850 l	1.230 l	1.500 l	1.720 l
Drum diameter	950 mm	1.250 mm	1.500 mm	1.800 mm	2.000 mm
Drum height	500 mm	625 mm	625 mm	625 mm	625 mm
Type of drive	PTO shaft	PTO shaft	PTO shaft	PTO shaft	PTO shaft
Power requirement	Mixing and driving from 20 hp	Mixing and driving from 50 hp	Mixing and driving from 80 hp	Mixing and driving from 100 hp	Mixing and driving from 120 hp
Net weight	approx. 280 kg	approx. 350 kg	approx. 450 kg	approx. 510 kg	approx. 580 kg
Spring-loaded mixing arms	3 pc.	4 pc.	4 pc.	4 pc.	5 pc.
Concrete mixing capacity	approx. 4 m³ / h	approx. 8 m³ / h	approx. 13 m³ / h	approx. 15 m³ / h	approx. 17 m³ / h
Number of pushers	1 pc. mechanical	1 pc. mechanical	1 pc. mechanical	1 pc. mechanical	3 pc. mechanical
Chute	Rigid	Swivelling 180 °	Swivelling 180 °	Swivelling 180 °	Swivelling 180 °

Accessories

Drive shaft

A wide variety of PTO shafts are available as accessories for the TURBO MIX compulsory mixer. The PTO shaft size III is perfectly suited for the models TM 95 to TM 150, for the models TM 180 and TM 200 there is the size IV. This means that the mixer can be used very easily with the matching PTO shaft in the three-point.

PTO shaft size III

PTO shaft size IV

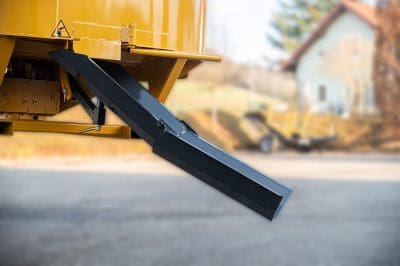

Chute extension

A 180-degree swivelling chute is included as standard from the TM 125 model onwards. To make discharge of the mixed concrete even easier, the optional chute extension can simply be hooked onto the existing discharge chute – increasing not only accuracy but also working comfort during discharge. This option is available for the TM 125 to TM 200 concrete mixer models.

Scraper for side wall

This accessory is used for optimal cleaning of the side walls when mixing earth-moist concrete. The side wall scraper is mounted directly on the mixing pan and is made of special spring steel, similar to the spring tines on the mixing pan.

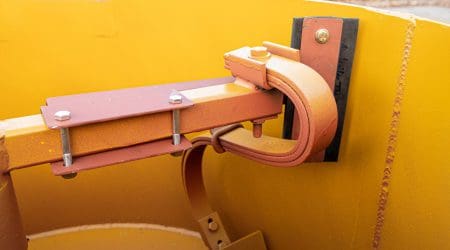

Scraper for TM 95

Scraper for TM 125 – TM 150

Scraper for TM 180 – TM 200

Electric motor

Instead of the standard PTO drive, the TM 125 to TM 200 compulsory mixers are also available with an electric motor as an option. A 32 amp connection is required to operate the motor properly. For safe transport of the electrically operated mixer, a forklift insert is included in the scope of delivery.

TURBO MIX type	Electric motor size (recommendation)
TM 125	7,5 kW
TM 150	9,5 kW
TM 180	11 kW
TM 200	15 kW

Hydraulic motor drive

The optional oil drive is available in two different sizes and allows the compulsory mixer to be operated from a yard, wheel or telescopic loader. For safe transport of the hydraulically operated mixer, a forklift insert is included in the scope of delivery.

Hydraulic motor	TURBO MIX type	Minimum hydraulic power carrier vehicle
Hydraulic motor drive I	TM 95 – TM 150	approx. 60 litres / min.
Hydraulic motor drive II	TM 180 – TM 200	approx. 80 litres / min.

Hydraulic motor drive TM 95 type

Hydraulic motor drive TM 150 type

Seeding equipment

The optional seeding equipment consists of additional scraper bars that are fitted directly on the mixing pan. Due to the large scraper bars, even fine-grained seed is mixed even better and more evenly. This accessory makes the MAMMUT compulsory mixers even more versatile.

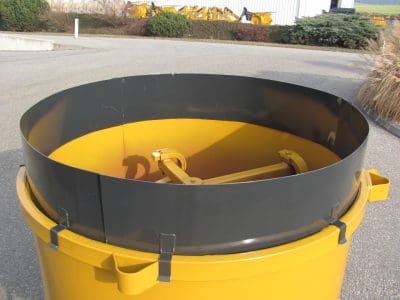

Light material attachment

For seed dressing, a larger volume is advantageous – for this, a light material attachment is simply fitted on the drum rim of the compulsory mixer, thus increasing the usable volume for light material mixtures.

Hydraulic pusher opening

Mechanical openings are included in the basic equipment of all TURBO MIX models. In order to be able to operate the pusher conveniently from the tractor, hydraulic control of the outlet is available as an option. This additionally simplifies concreting and significantly increases working comfort during mixing.

Support bracket

This accessory serves as an aid when filling with a mechanical front loader. The loader’s bucket can be supported on the bracket without damaging the concrete mixer.

Filling hopper

The filling hopper is used to increase the filling width for larger loading buckets. This ensures that the mixing components reliably get into the hopper – even if the bucket of the front loader is wider than the drum diameter of the concrete mixer.

Tractor chassis

The compulsory mixer can also be assembled on its own axle if the tractor does not have the necessary lifting power. The concrete mixer is easily attached to the carrier vehicle via the towing eye. Even if the necessary own weight or the power of the tractor is not sufficient, a mobile mixing operation is thus ensured.
