Self-loader pan mixers

MAMMUT Self-loader pan mixers

Stand-alone filling and efficient concrete mixing in a single system

The self-loader cement mixer makes the work process on the construction site even easier and more efficient. Thanks to the integrated loading bucket, the mixer can pick up the materials itself, eliminating the need for an additional vehicle for filling. This saves time, reduces the workload and ensures that everything runs smoothly on the construction site.

The self-loader pan mixer is available in two different sizes and can therefore be used for a range of different requirements. It can also be converted into a filling machine for silo bags in just a few simple steps. This additional function makes the TURBO MIX self-loader a well-thought-out solution for anyone looking for an efficient and practical concrete mixing technique.

Own loading bucket for filling

Two different models

Two drive types possible

Silo bag filling option possible

Standard equipment
Suitable for PTO shaft drives
3-point attachment for top link
Forklift slot
180 ° swivelling chute
Flange opening for sand filling (SILO FILL)
Split protective grid with integrated water pipe and 1/2 inch thread
A mechanical slider, bag opener, tractor mudguard
Hydraulic loading shovel (1 x DW required)

Highlight

Drive type – can be retrofitted at any time

A particular highlight of the TURBO MIX pan mixer is the option to adapt the drive to new requirements at any time. In addition to the standard PTO, the mixer can be retrofitted with a hydraulic motor – simply by using a screw-on connection. This retrofitting option makes the TURBO MIX particularly versatile and allows for flexible use with tractors, wheel loaders or forklifts.

The simple conversion ensures that the mixer can be adapted to changing operating conditions or new areas of application. This makes the TURBO MIX a long-term investment that grows with your requirements and ensures maximum efficiency in the concrete mix.

MAMMUT Zwangsmischer TURBO MIX, Getriebe des Mischers mit Ölmotor

Technical Data

	TM 125 SF	TM 150 SF
Usable capacity for concrete	500 l	750 l
Drum diameter	1.250 mm	1.500 mm
Drum height	625 mm	625 mm
Type of drive	PTO shaft	PTO shaft
Power requirement	Mixing and driving from 80 hp	Mixing and driving from 100 hp
Net weight	approx. 830 kg	approx. 910 kg
Spring-loaded mixing arms	4 pc.	4 pc.
Concrete mixing capacity	approx. 8 m³ / h	approx. 13 m³ / h

Accessories

Drive shaft

A size III PTO shaft is available as an accessory for both self-loading models. This means that the mixer can be used very easily with the matching drive shaft in the three-point.

Drive shaft size III

SILO FILL bag filling

With the SILO FILL silo bag filling option, the TURBO MIX self-loader pan mixer becomes a multifunctional unit that considerably simplifies the process of filling silo bags. The standard opening in the pan mixer is covered during normal concrete mixing, thus ensuring full functionality without any impairments. When the silo bag filling spout is used, this cover can be removed and, thanks to a simple screw connection, quickly and easily mounted.

MAMMUT Zwangsmischer TURBO MIX mit Abdeckung der Abfüllöffnung am Boden des Mischers

MAMMUT Zwangsmischer TURBO MIX, Montage des SILO Fill Silosackabfüllstutzen

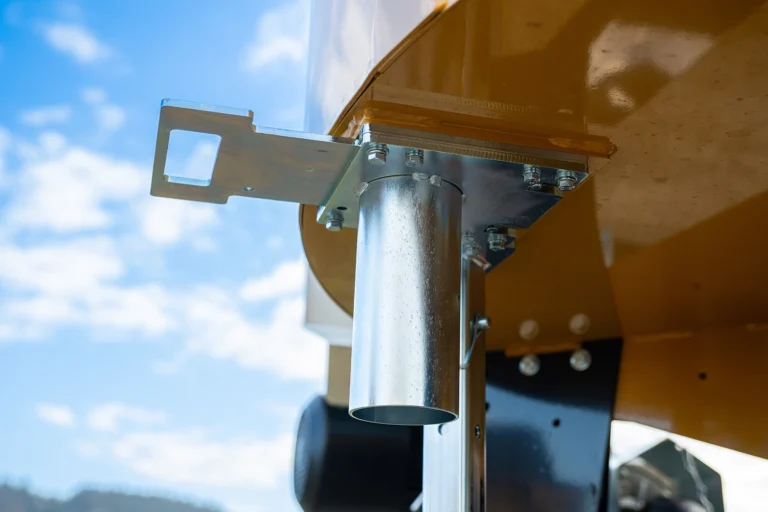

MAMMUT Zwangsmischer TURBO MIX, geöffnete Schiebeöffnung des SILO FILL Silosackabfüllstutzens

The SILO FILL spout makes filling silo bags an effortless process: Position the bag, pull the filling handle and fill, then close – without any hassle. The silo bag can then be conveniently closed without the need for additional labour. The SILO FILL function significantly expands the range of applications of the TURBO MIX and makes it a flexible and time-saving helper, whether on the construction site or in agriculture.

MAMMUT Zwangsmischer TURBO MIX, Person legt einen Silosack am SILO Fill Silosackabfüllstutzen an

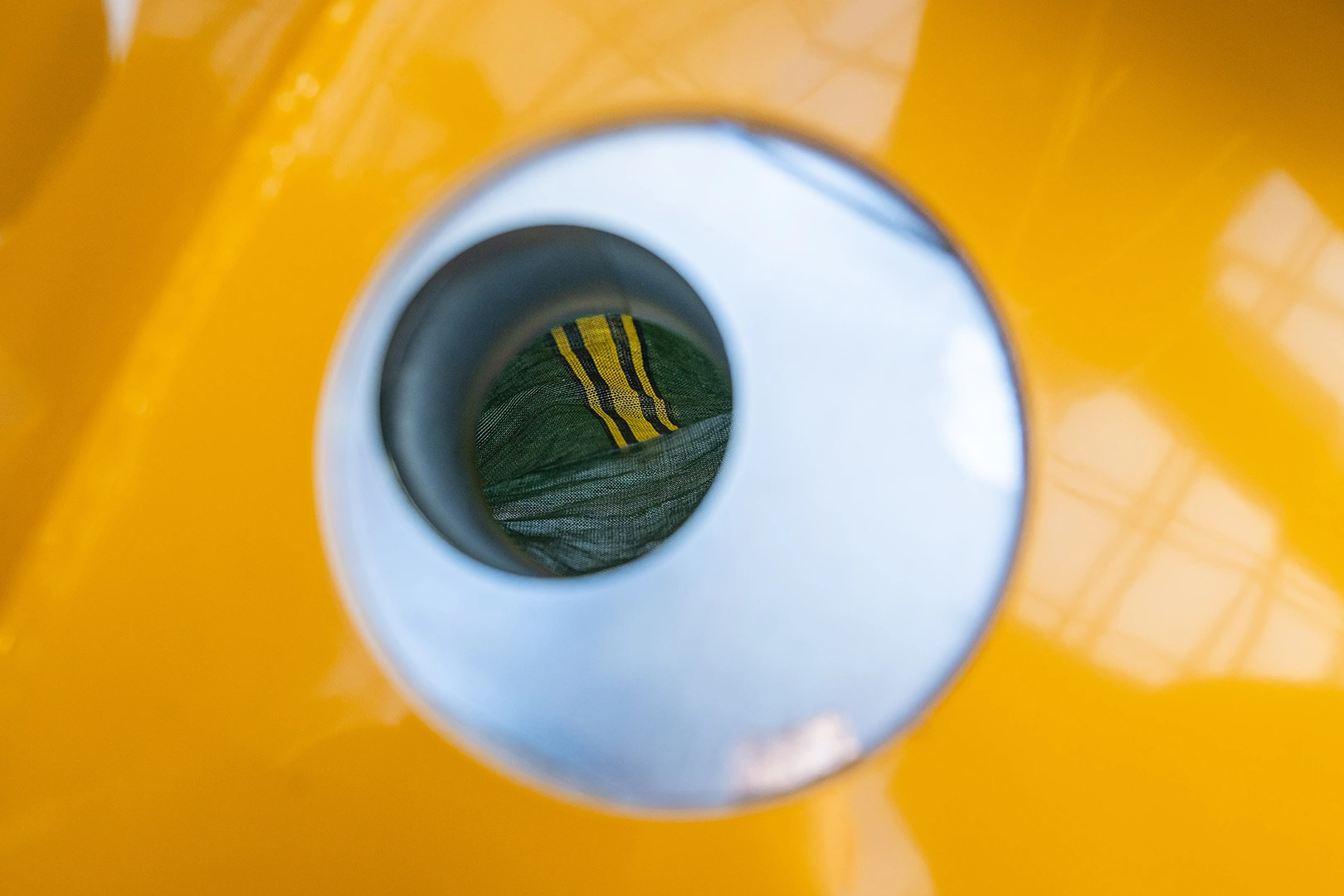

MAMMUT Zwangsmischer TURBO MIX, Blick durch die Öffnung des SILO Fill Silosackabfüllstutzens von Innen auf den Silosack

MAMMUT Zwangsmischer TURBO MIX, Person befüllt mit SILO Fill Silosackabfüllstutzen einen Silosack

Hydraulic sliding opening

All TURBO MIX pan mixer models are equipped as standard with mechanical sliding openings including a splash guard. For even more convenience when concreting, the hydraulic control of the outlet can be added as a practical option. This makes it possible to conveniently operate the slider directly from the tractor, which significantly simplifies the work process. Thanks to the screw-on design, the hydraulic sliding opening can be easily retrofitted at any time.

MAMMUT Zwangsmischer TURBO MIX, hydraulische Schiebeöffnung geöffnet am Mischer

MAMMUT Zwangsmischer TURBO MIX, hydraulische Schiebeöffnung und Zylinder am Mischer

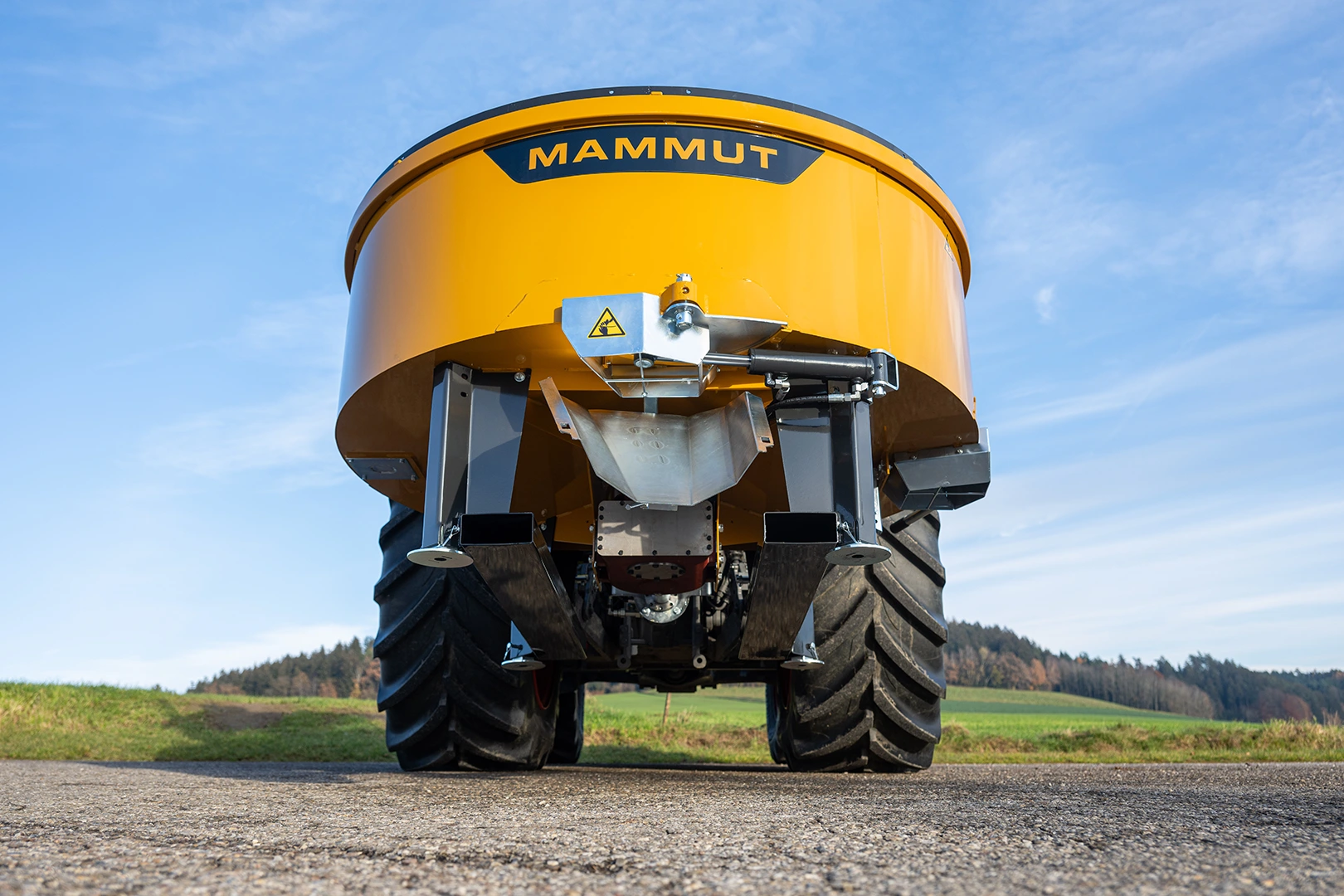

MAMMUT Zwangsmischer TURBO MIX, hydraulische Schiebeöffnung am Traktor und Staplereinschub

MAMMUT Zwangsmischer TURBO MIX, Person montiert die hydraulische Schiebeöffnung am Mischer

Water connection

The TURBO MIX self-loader pan mixer offers a well-thought-out solution for the water supply as standard. The protective grid already has an integrated pipe, with precisely placed holes in the centre section of the grid and a 1/2 inch threaded connection. This design allows the water to flow directly onto the mixture, enabling the mixing ratio to be controlled even more precisely. An optional water supply with a water meter is available for added convenience. This extension allows direct access to the water.

Option to connect to the water supply with a 1/2 inch thread

Side wall scraper

The side wall scraper is used when mixing earth-moisture concrete to thoroughly clean the drum walls and prevent adhesions in the upper edge area in the process, thus ensuring a more consistent mixing ratio. This is mounted directly on the mixing cross of the pan mixer and is made of special spring steel, which ensures stability and a long service life even with intensive use. The screw-on design allows for quick and easy retrofitting of the side wall scraper on the self-loader pan mixer.

MAMMUT Zwangsmischer TURBO MIX, Seitenwandabstreifer am Mischkreuz

MAMMUT Zwangsmischer, TURBO MIX Seitenwandabstreifer

MAMMUT Zwangsmischer TURBO MIX, Person montiert Seitenwandabstreifer an Mischkreuz

Hydraulic motor drive

The hydraulic drive of the TURBO MIX self-loader pan mixer offers maximum versatility and independence. A flow rate of approx. 60 litres/min. is required to drive the hydraulic motor. When operated with an oil motor, the mixer can be easily operated on wheel, yard or telescopic handlers. The additional mobility, lifting and extending of the mixer enables precise concreting even in areas that are difficult to access, thus ensuring a particularly flexible application.

A standard and particularly practical forklift slot ensures safe transport of the hydraulically operated concrete mixer and combines mobility with a high level of safety. The hydraulic motor drive can be retrofitted to all models with screws and considerably expands the range of applications for the self-loader pan mixer.

MAMMUT Zwangsmischer TURBO MIX, mit montiertem Ölmotor

MAMMUT Zwangsmischer TURBO MIX, Person hält Hydraulikanschlüsse des Ölmotors

MAMMUT Zwangsmischer TURBO MIX, Person montiert Ölmotor mit Flanschverbingung

Wheel loader attachment

The TURBO MIX pan mixer is equipped as standard with a handy forklift slot, making it easy to transport with a loader. With a matching transport lock, the TURBO MIX can be safely put into operation and mix directly while driving. For those who want to connect the mixer even more directly to their wheel loader, the optional wheel loader attachment is the perfect solution. This solution enables both smooth transport and simultaneous mixing. The concrete mixer is securely connected to the loader via a sturdy mounting, ensuring efficient and precise operation.
