Pan mixer for wheel loaders

MAMMUT Pan mixer for wheel loaders

The ideal solution for flexible working and precise concreting

The optional hydraulic motor, available for all types, makes the pan mixer for wheel loaders an even more versatile solution, particularly attractive for construction companies. MAMMUT pan mixers for wheel loaders, yard loaders and telescopic handlers make optimal use of your existing fleet and enable flexible and efficient working. Thanks to the standard forklift slot, the mixers can be easily attached to loading vehicles. With a range of five models covering capacities from 240 to 1,200 litres, the TURBO MIX offers the right solution for every requirement. The option of extending the concrete mixer in height and width using the loader opens up numerous benefits – from precise filling to flexible emptying on a wide range of construction sites. The combination of mobile use, robust construction and customisability makes MAMMUT pan mixers an indispensable tool for use with loading vehicles.

Standard forklift slot

Better utilisation of the existing fleet

Ideal for industry, construction companies and the like

Oil motor can be retrofitted to all types

Standard equipment
Suitable for PTO shaft drives
3-point attachment for top link
Forklift slot
180 ° swivelling chute
Flange opening for sand filling (SILO FILL & QUICK FILL)
Split protective grid with integrated water pipe and 1/2 inch thread
One mechanical slider for types TM 95-180, two mechanical sliders for type TM 200
Adjustable feet, bag opener, tractor mudguard

Highlight

Drive type – can be retrofitted at any time

A particular highlight of the TURBO MIX pan mixer is the option to adapt the drive to new requirements at any time. In addition to the standard PTO, the mixer can be retrofitted with a hydraulic motor or an electric motor – simply by using a screw-on connection. This retrofitting option makes the TURBO MIX particularly versatile and allows for flexible use with tractors, wheel loaders or forklifts, as well as a stationary solution.

The simple conversion ensures that the mixer can be adapted to changing operating conditions or new areas of application. This makes the TURBO MIX a long-term investment that grows with your requirements and ensures maximum efficiency in the concrete mix.

MAMMUT Zwangsmischer Turbo Mix mit E-Motor am TM 150 seitlich

MAMMUT Zwangsmischer TURBO MIX, Getriebe des Mischers mit Ölmotor

Technical Data

	TM 95	TM 125	TM 150	TM 180	TM 200
Usable capacity for concrete	240 l	500 l	750 l	1.000 l	1.200 l
Drum diameter	950 mm	1.250 mm	1.500 mm	1.800 mm	2.000 mm
Drum height	625 mm	625 mm	625 mm	625 mm	625 mm
Optional type of drive	Hydraulic motor	Hydraulic motor	Hydraulic motor	Hydraulic motor	Hydraulic motor
Power requirement	from 40 l/min	from 60 l/min	from 60 l/min	from 80 l/min	from 80 l/min
Net weight	approx. 440 kg	approx. 510 kg	approx. 570 kg	approx. 750 kg	approx. 830 kg
Spring-loaded mixing arms	3 pc.	4 pc.	4 pc.	4 pc.	5 pc.
Concrete mixing capacity	approx. 4 m³ / h	approx. 8 m³ / h	approx. 13 m³ / h	approx. 15 m³ / h	approx. 17 m³ / h

Accessories

Wheel loader attachment

The TURBO MIX pan mixer is equipped as standard with a handy forklift slot, making it easy to transport with a loader. With a matching transport lock, the TURBO MIX can be safely put into operation and mix directly while driving. For those who want to connect the mixer even more directly to their wheel loader, the optional wheel loader attachment is the perfect solution. This solution enables both smooth transport and simultaneous mixing. The concrete mixer is securely connected to the loader via a sturdy mounting, ensuring efficient and precise operation.

SILO FILL bag filling

With the SILO FILL silo bag filling option, the TURBO MIX pan mixer becomes a multifunctional unit that considerably simplifies the process of filling silo bags. The standard opening in the pan mixer is covered during normal concrete mixing, thus ensuring full functionality without any impairments. When the silo bag filling spout is used, this cover can be removed and, thanks to a simple screw connection, quickly and easily mounted.

MAMMUT Zwangsmischer TURBO MIX mit Abdeckung der Abfüllöffnung am Boden des Mischers

MAMMUT Zwangsmischer TURBO MIX, Montage des SILO Fill Silosackabfüllstutzen

MAMMUT Zwangsmischer TURBO MIX, geöffnete Schiebeöffnung des SILO FILL Silosackabfüllstutzens

The SILO FILL spout makes filling silo bags an effortless process: Position the bag, pull the filling handle and fill, then close – without any hassle. The silo bag can then be conveniently closed without the need for additional labour. The SILO FILL function significantly expands the range of applications of the TURBO MIX and makes it a flexible and time-saving helper, whether on the construction site or in agriculture.

MAMMUT Zwangsmischer TURBO MIX, Person legt einen Silosack am SILO Fill Silosackabfüllstutzen an

MAMMUT Zwangsmischer TURBO MIX, Blick durch die Öffnung des SILO Fill Silosackabfüllstutzens von Innen auf den Silosack

MAMMUT Zwangsmischer TURBO MIX, Person befüllt mit SILO Fill Silosackabfüllstutzen einen Silosack

QUICK FILL sandbag filling

With the QUICK FILL sandbag filling option, the TURBO MIX pan mixer is an indispensable helper, especially in emergencies. The QUICK FILL package includes a patented filling spout for particularly fast and effortless filling of sandbags. It also includes raised support feet and a handy storage area that makes workflows safer and more convenient.

MAMMUT Zwangsmischer TURBO MIX, Person montiert den Quick Fill Sandsackabfüllstutzen am Mischer

MAMMUT Zwangsmischer TURBO MIX - Quick Fill Sandsackabfüllset mit Abfüllstutzen, höhere Stützfüße und Ablagefläche

The QUICK FILL option is proving to be a valuable support, especially in flood operations when every minute counts. Simply position the bag, pull the filling spout towards you, fill and close again. This smooth workflow makes the filling process particularly intuitive and time-saving. This makes the TURBO MIX pan mixer a versatile piece of equipment that offers maximum performance and reliability not only on construction sites but also in extreme situations.

MAMMUT Zwangsmischer TURBO MIX, Person bedient Quick Fill Sandsackabfüllset am Zwangsmischer

MAMMUT Zwangsmischer TURBO MIX mit einer Abdeckung der Abfüllöffnung von innen geöffnet

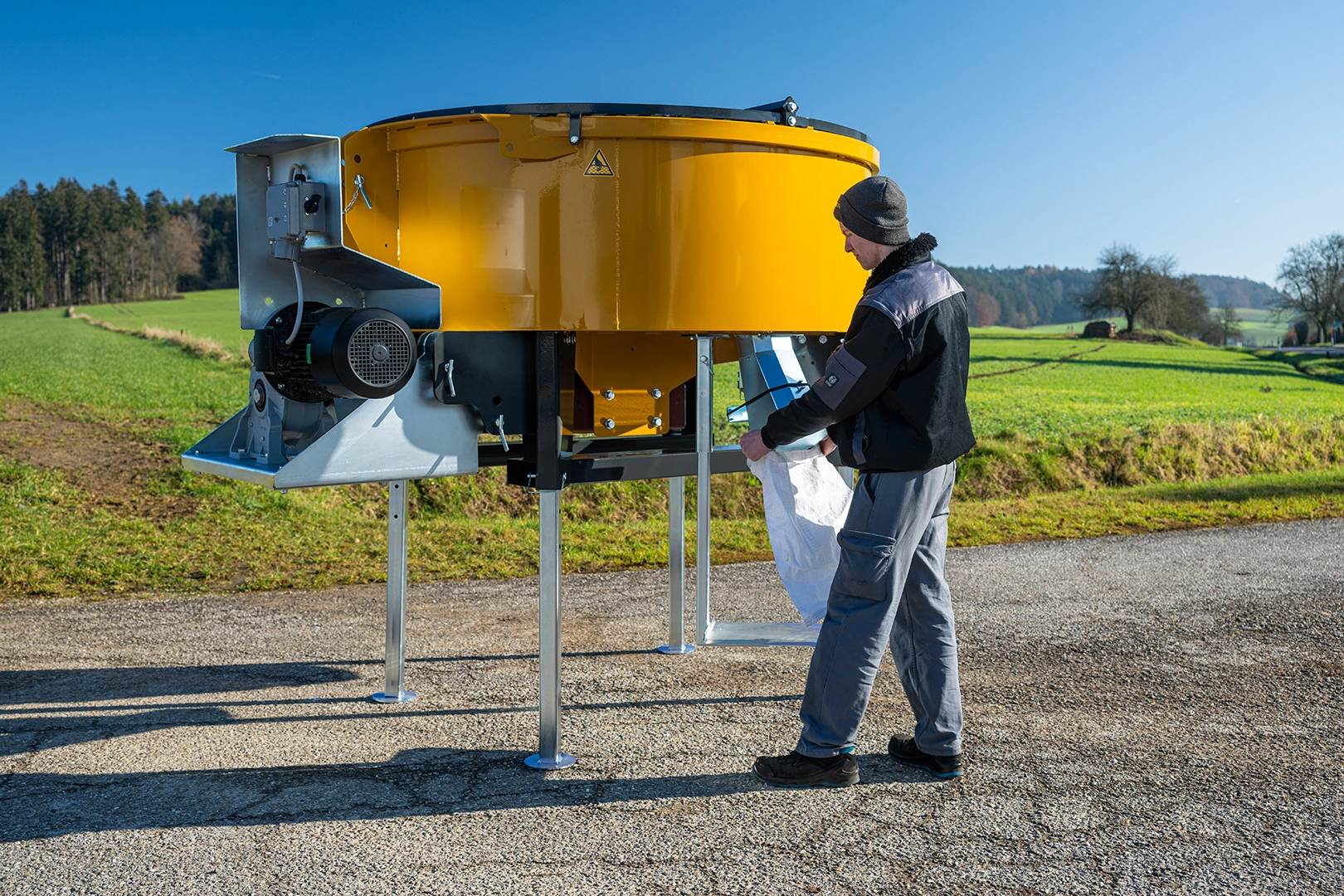

MAMMUT Zwangsmischer TURBO MIX, Person befüllt mit Quick Fill Sandsackabfüllstutzen einen Sandsack am Mischer mit E-Motor

Hydraulic sliding opening

All TURBO MIX pan mixer models are equipped as standard with mechanical sliding openings including a splash guard. For even more convenience when concreting, the hydraulic control of the outlet can be added as a practical option. This makes it possible to conveniently operate the slider directly from the tractor, which significantly simplifies the work process. Thanks to the screw-on design, the hydraulic sliding opening can be easily retrofitted at any time.

MAMMUT Zwangsmischer TURBO MIX, hydraulische Schiebeöffnung geöffnet am Mischer

MAMMUT Zwangsmischer TURBO MIX, hydraulische Schiebeöffnung und Zylinder am Mischer

MAMMUT Zwangsmischer TURBO MIX, hydraulische Schiebeöffnung am Traktor und Staplereinschub

MAMMUT Zwangsmischer TURBO MIX, Person montiert die hydraulische Schiebeöffnung am Mischer

Water connection

The TURBO MIX pan mixer offers a standard solution for the water supply. The protective grid already has an integrated pipe, with precisely placed holes in the centre section of the grid and a 1/2 inch threaded connection. This design allows the water to flow directly onto the mixture, enabling the mixing ratio to be controlled even more precisely. An optional water supply with a water meter is available for added convenience. This extension allows direct access to the water.

Option to connect to the water supply with a 1/2 inch thread

Chute extension

The standard 180° swivelling discharge chute of the TURBO MIX pan mixer is already integrated into all types and enables precise emptying of the mixed concrete. For even more comfort and precision, the optional chute extension can be added, which can be easily hooked onto the existing discharge chute. This extension makes it much easier to pour the concrete, as the extended reach enables more precise positioning. This not only ensures clean work, but also significantly increases working comfort. The chute extension is compatible with all TURBO MIX models and offers a practical addition.

Filling hopper

The funnel extends the filling width of the pan mixer, enabling easy and reliable filling, even with larger loading buckets. This extension ensures that all mixing components enter the drum cleanly and precisely, even if the bucket is wider than the drum diameter of the concrete mixer. Thanks to its easy installation, the filling hopper is the ideal addition for more precise concrete mixing.

Side wall scraper

The side wall scraper is used when mixing earth-moisture concrete to thoroughly clean the drum walls and prevent adhesions in the upper edge area, thus ensuring a more consistent mixing ratio. This is mounted directly on the mixing cross of the pan mixer and is made of special spring steel, which ensures stability and a long service life even with intensive use. The screw-on design allows for quick and easy retrofitting of the side wall scraper.

MAMMUT Zwangsmischer TURBO MIX, Seitenwandabstreifer am Mischkreuz

MAMMUT Zwangsmischer, TURBO MIX Seitenwandabstreifer

MAMMUT Zwangsmischer TURBO MIX, Person montiert Seitenwandabstreifer an Mischkreuz

Support bracket

The support bracket is a practical accessory that has been specially developed to make it easier to fill the pan mixer with a front loader with a mechanical release. When loading, the loading bucket can be safely supported on the bow without damaging the concrete mixer or its drum. However, the support bracket is only necessary if the front loader is mechanically notched. This can be retrofitted to all TURBO MIX models and is the ideal addition for increasing comfort and safety when filling.

Electric motor

For quiet and emission-free operation, an electric motor is available as an optional drive variant for the TM 95 to TM 200 pan mixers. The electric motor allows the machine to be operated without the standard PTO shaft and is ideal for applications where no tractor connection is required.

TURBO MIX type	Electric motor size (recommendation)
TM 95	5.5 kW
TM 125	7.5 kW
TM 150	9.5 kW
TM 180	11 kW
TM 200	15 kW

Simple retrofitting

The electric motor can be retrofitted to all models by means of screws, thus offering maximum flexibility for optimally adapting the TURBO MIX to a range of different application requirements.

MAMMMUT Zwangsmischer TURBO MIX, Person montiert den Elektromotor anhand der Zapfwellenverbindung

MAMMMUT Zwangsmischer TURBO MIX, Flanschverbindung bei Montage des Elektromotors

MAMMMUT Zwangsmischer TURBO MIX, Elektromotor und Quick Fill am TM 200 montiert

Drive shaft

The TURBO MIX pan mixer is driven as standard by the tractor’s PTO shaft and offers a reliable and powerful concrete mix directly on site. A wide range of drive shafts are available as accessories for optimal adaptation: Size III for models TM 95 to TM 150 and size IV for the larger models TM 180 and TM 200.

Drive shaft size III

Drive shaft size IV

Three-point chain

In addition, the optional three-point chain provides more flexibility, especially when used with smaller tractors. By shifting the centre of gravity close to the carrier vehicle, it increases stability and improves the smooth running of the mixer. This is how the TURBO MIX remains secure and efficient in operation, even under demanding conditions.
