TOWED feed mixer Profi Mix

MAMMUT Feed mixer TOWED Profi Mix

The compact feed mixer with a volume of 4.5 m³

As an optimum supplement for use with the tractor, MAMMUT has developed the towed PM 4.0 A 4.5 m³ feed mixer. This compact feed mixing wagon is characterised by its low design which means that it can also distribute feed in buildings with low headroom. If being filled using front loader, yard loader or wheel loader, the towed feed mixer has the advantage of a low tipping height.

Low design

For PTO drive on the tractor

A wide range of accessories

Also suitable for long-fibre feed

Standard equipment for TOWED Profi Mix
Mixing hoppers, a screw, trailer axle and tyres
One-sided wide-angle universal shaft
Hydraulic clearing
Two counter-cutters
Straw ring and rubber extension

Technical data

	PM 4.0 A
Fill volume	4.5 m³
Fill volume with extension (accessories)	5.5 m³
Max. fill quantity (approx.)	1,600 kg
Number of cows	approx. 20 - 30 GVE
Number of augers	1
Attachment	Trailer axle and tyres
Type of drive	Tractor PTO shaft
Output speed with frequency converter	approx. 26 – 40 rpm.
Number of cutters	4 x big / 2 x small
Net weight	1,730 kg
Height	2.15 m
Width	1 pusher = 2.09 m 2 pushers = 2.22 m
Length	4.05 m

Accessories

Electronic weighing systems increase mix precision

Precise calculation of group-assigned rations requires accurate dosing. To ensure that individual feed components genuinely are added in the right quantities, it is advisable to use an electronic weighing system. With the help of weighing rods, portioning can, depending on setting, be defined precisely to within 1.0 kilogram which assures uniform mix rotation and therefore homogeneous feeding of the herd. With the PROFI MIX models, you can choose between the simple BASIC adding scale and the PROFESSIONAL programmable scale. The PROFESSIONAL weighing system saves up to 24 recipes, each with 18 components and can be programmed by number of cattle or by total weight. As optional extras for this professional scale, other functions such as a modem app package or a light or horn signal is available to indicate when the right quantity is reached.

We would be pleased to advise you about our weighing system and are sure to find the right solution for your farm:

+43 (0) 7757 6701

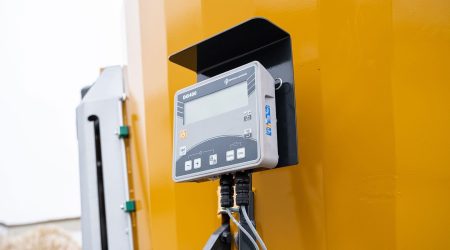

BASIC weighing system

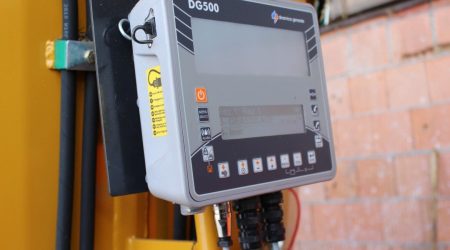

PROFESSIONAL weighing system

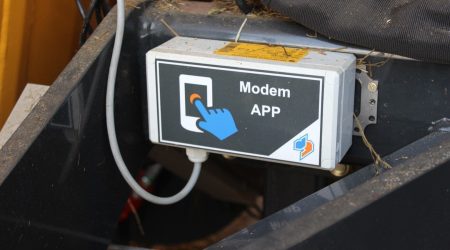

Modem app package is available

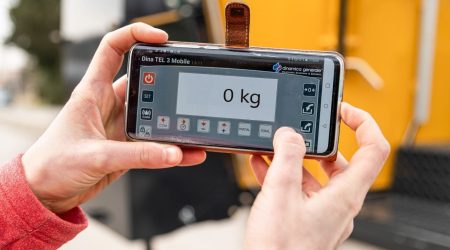

Weighing system can be called up on your mobile phone

Double-sided hydraulic clearing

In many livestock buildings, double-sided clearing is a good idea because this provides the flexibility of presenting feed to both sides. The two pushers are controlled hydraulically from the tractor. For this, two double-action functions are needed on the tractor vehicle. As standard, the towed MAMMUT PM 4.0 A mixer carriage is equipped with a hydraulic pusher.

Futtermischwagen Profi Mix GEZOGEN mit beidseitiger Austragung

Futtermischwagen Profi Mix GEZOGEN mit beidseitige Austragung

Metal attachment for additional volume

In mix rotations with a high proportion of hay or straw or with structured silage, it is advisable to fit the TOWED Profi Mix with a metal attachment which is available as an accessory. This means that the volume of the feed mixer can be increased by an additional 1.0 m³. The levels for increasing metal content can be adapted to suit individual requirements, to suit the needs of each customer.

Metallaufsatz für Futtermischer PROFI MIX

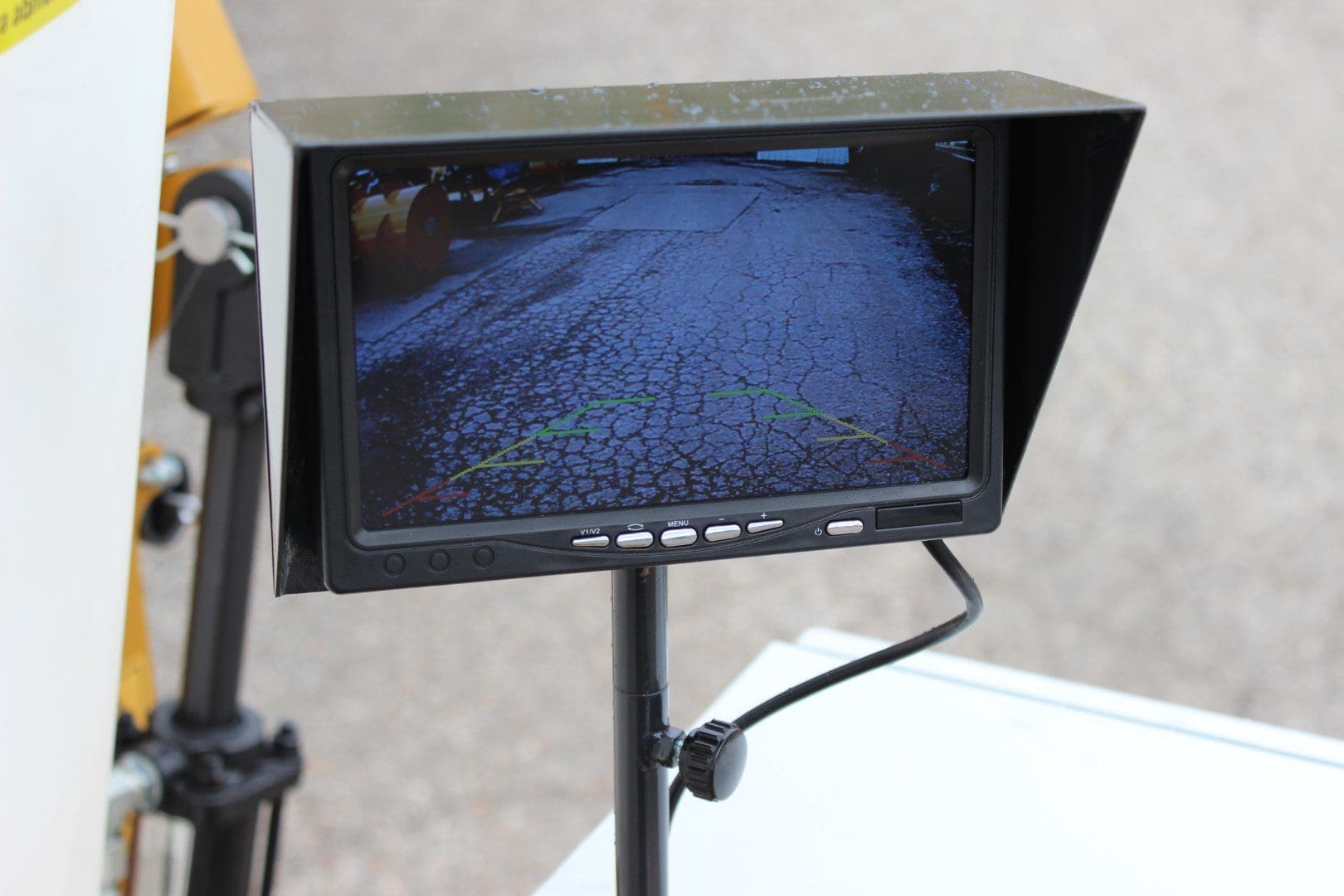

Reversing camera for greater safety

For better oversight when pushing backwards or manoeuvring in the farmyard, it is advisable to install the optional reversing camera. With the manually adjustable camera on the TOWED Profi Mix mixer carriage, you get a great view of relatively concealed areas, preventing collisions in confined spaces.

Futtermischwagen Profi Mix GEZOGEN mit Rückfahrkamera

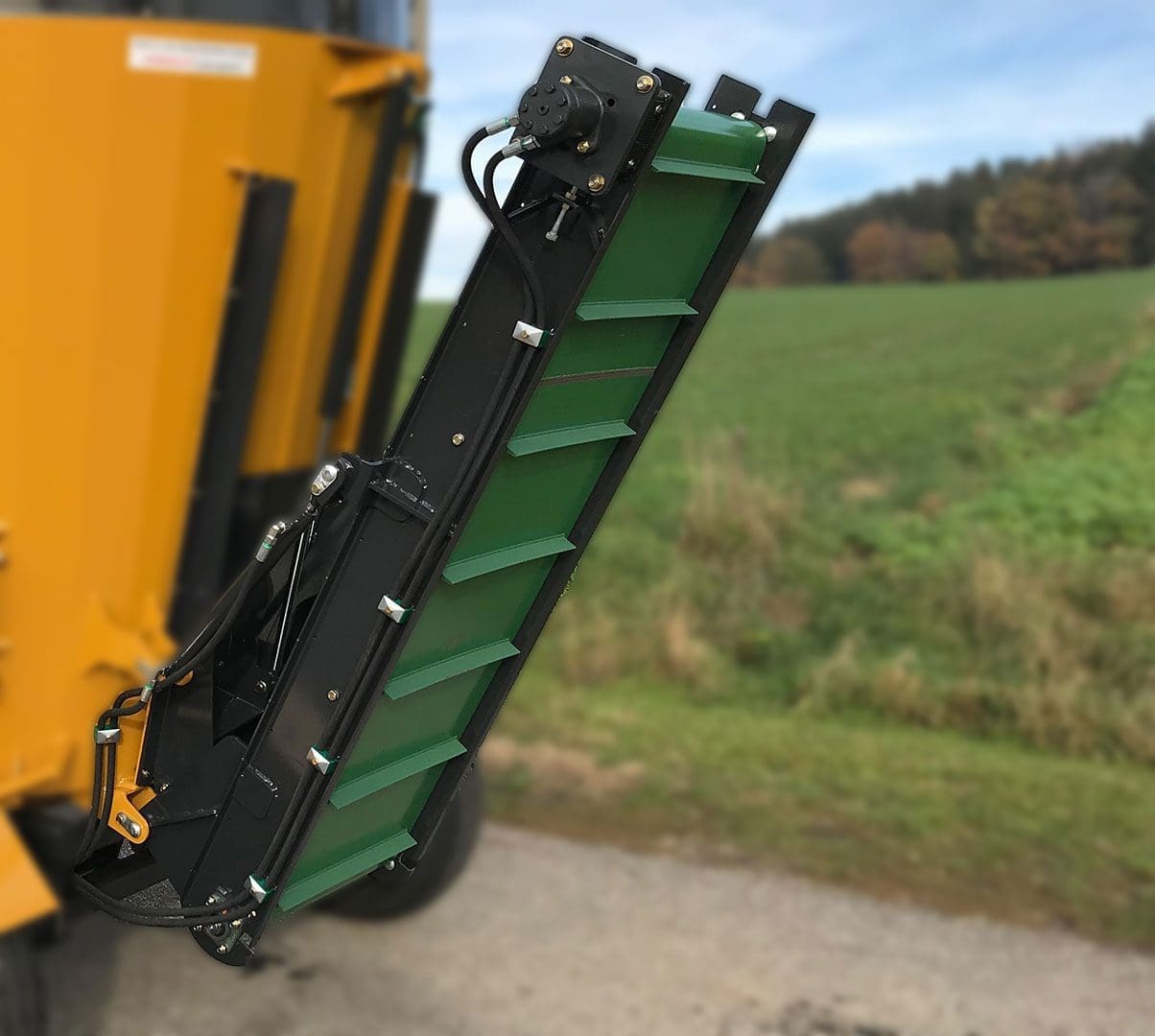

Convenient feed clearing with a conveyor belt

Further options that can be ordered for the TOWED Profi Mix include a transverse conveyor belt or a hydraulically folding conveyor belt. This means that the mixed down total mix rotation can be placed directly in the feed trough or on the manger without the need for any further manual work. The conveyor belt runs on mobile rollers, a convincingly robust design that operates reliably. When an order is being place, adjustments are made to suit individual requirements.

Futtermischwagen Profi Mix GEZOGEN mit Förderband

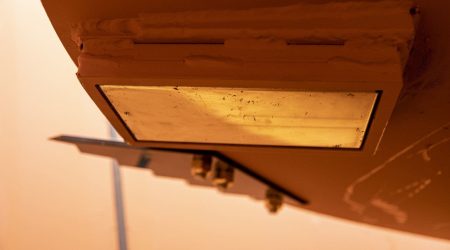

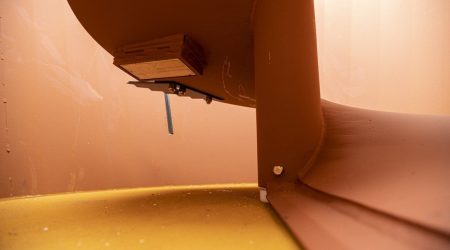

Magnets reduce the risk of injury

Unfortunately, it is not infrequent during the feed harvesting process for metal components such as screw or broken off parts of machine cladding to land in the feed. If these foreign bodies are presented in the mix rotation, this can lead to serious illnesses. With optional screw magnets for the TOWED Profi Mix, foreign bodies can be caught and filtered out of the ration very effectively. This consistently reduces the risk of injury to livestock. On the PM 4.0 A, there are two on the vertical mixer screw.

These magnets secure metal components in the feed securely and reduce the risk of injury.

Catching foreign bodies correctly
